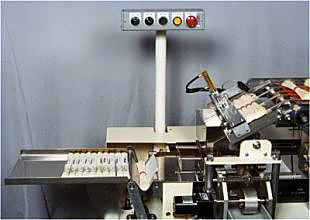

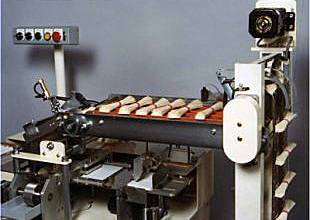

SKILL Fully automatic dried noodles paper packaging machine

We will up to the highest efficiency.

Feature

• 19m / m ~ 40m / m until you can freely packaging is the thickness of the noodles.
• It can be packaged in a uniform hardness even if there is a rose with the thickness of the noodles.
• You can hardness of your choice by adjusting the hardness tighten wound.
• It can also be used as a stand-alone machine, but you can also build automated system in conjunction with binding machine.
• Movement is simple anywhere caster so we attached.

　

Specification

Dried noodles dimension	Diameter: φ19mm ~ φ40mm length : 180m/m ~ 250m/m
Wrapping paper size	H : 150m/m～250m/m W : 90m/m～160m/m
Label dimensions	15m/m X 35m/m(Standerd)
Packaging capacity	7,000 ~ 8,000/day
Cycle time	3sec/1
Machine dimensions	1,800(L) X 900(W) X 1,300(H)
Power	AC200V(AC100V)
